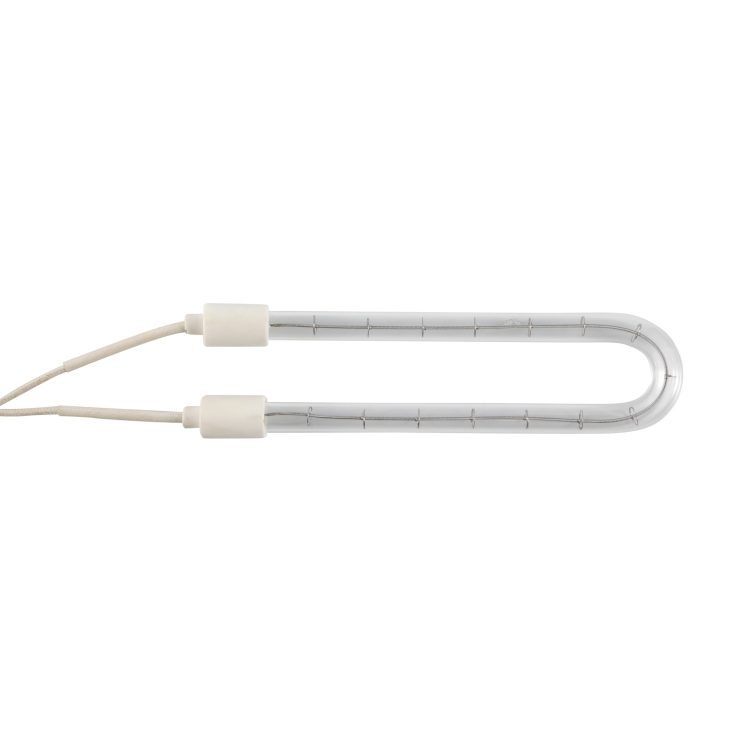

Gold-plated shaped infrared heating tubes
YFR can provide special Infrared heater for industrial processes with small area surfaces which need to heating. We can customize the shape according to special requirement .
Custom infrared emitters from Starinfrared are created to perfectly match your contoured parts and are developed for your specific heating requirements. We will collaborate with you to build and design an emitter that meets your needs, whether you’re starting a new heating project or need to replace an emitter on your current production line.
Advantages of electric quartz glass infrared emitters:

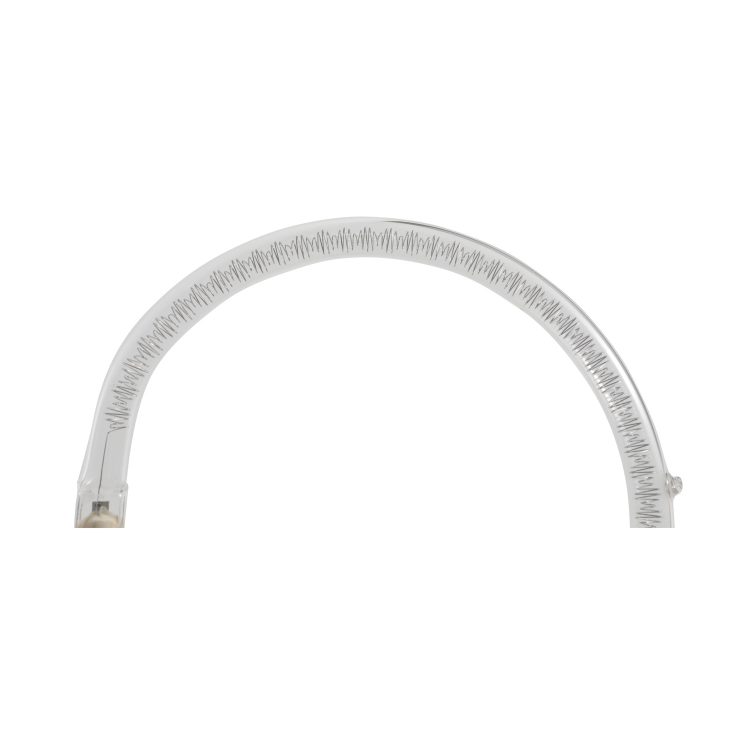

1.Fixed contour, common or unique design, such as O shape IR lamps
2.Approx. 1.800 – 2.400°C for the radiation temperature
3.Within 1s to reach the operational temperature
4.Power up to 200 KW/m²
5.Short cycle durations, with an average heating time of 12 seconds
6.Different wavelengths (0,78 μm to 2 μm)
7.Low risk of fire, Greater distance to material possible
8.Gold or ceramic white coating available for directional radiation
9.Available in gold or ceramic white coating for directional radiation
10.Energy Direction Emitters available for Tolerance Adjustment
11.In order to precisely heat certain regions, infrared emitters can be designed to follow edges, rims, and curves.
Technical Parameters:
1.VOLT: 100v – 480v
2.WATT: 200-8000W
3.HZ: 50-60 HZ
4.Electricity saving ratio: 30%
5.Infrared normal direction radiant ratio: over 94%
6.Electric heat transformation ratio: over 98%
7.Highest heat temperature endured: 1100C
8.Surface temperature: 500-900C
9.Continuous servicing hour: over 5, 000H
Applications:
Special shape quartz glass infrared emitters are widely used in automotive interior and exterior production lines, heating applications, including:
1.Vacuum laminating
2.Plastic deburring
3.Infrared joining and welding for plastics components
4.Activating adhesive
5.Thermoforming of car carpet and ceiling
6.Edge wrapping
Why Choose Us
We are a manufacturer of Quartz IR emitters and infrared heating systems. With 13 years of experience in this industry, we have always maintained a conscientious, professional, flexible, on-time delivery, and responsive after-sales service attitude.
If you have customized needs, please feel free to contact us.
How to customize
Frequently asked questions
1.Are you a factory or trading company?
Starinfrared is a factory,we are professional manufacturer of infrared heater.You are warmily welcome to our factory, we will be happy to show you our production, quality control, warehouse,etc.
2.Can I have samples?Is it free?
Yes, we are happy to offer samples for you to check and test. Depending on sample quantity and product model, we will confirm with you whether it is a free sample or not.
3.Is there any warranty?
This is a serious supplier with good material and strick quality checking.lfthere is any problem with lamps or broken during shipping.We willremedy immediately or redo for free!
4.Can you do the design for us?
We can provide you with the design. We have a professional team with richexperience, you only need to tell us your ideas, the specific quantity.spen, voltage and other data of the infrared tube you need, we can produce the products you need.
If you have any other questions, please feel free to contact us.
